• With ±0.2% of full scale, the dynamometer kit is designed to measure real time and peak push and pull forces

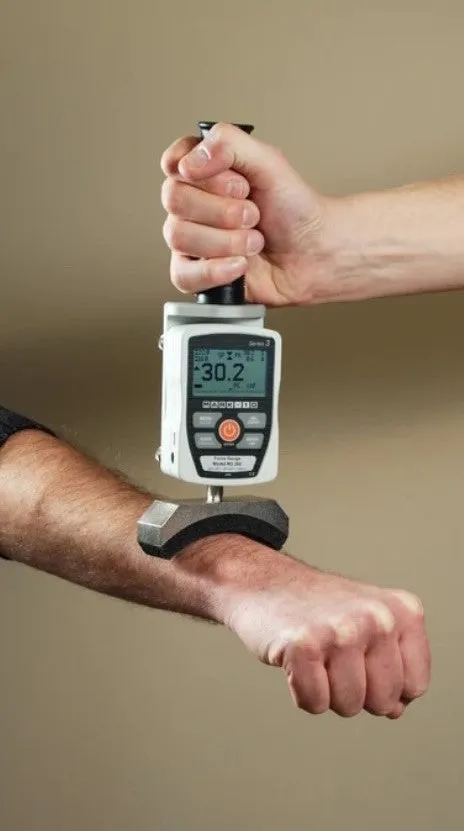

• Flat, curved, and square padded attachments mount directly to the force gauge for conducting strength analysis
• The clevis attachment for pull tests is a spring-loaded pin with ball plunger that locks into place for added safety during pull tests
• The multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low

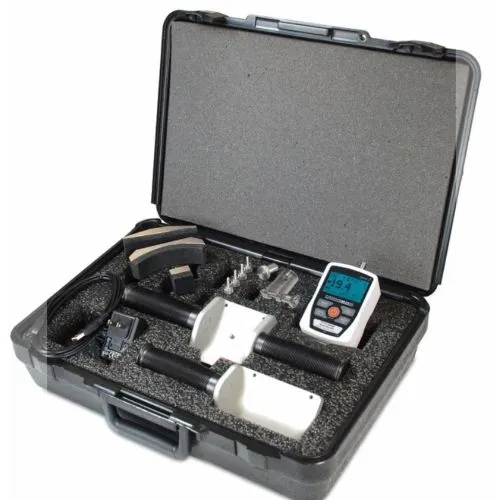

• Equipped with a cushioned carrying case, AC adapter, battery, user’s manual, and NIST-traceable certificate of calibration

Ideal for Accurate Job Task Analysis

Mark-10 Series EKE-3 Basic Push/Pull Dynamometer Kits help simplify job task analysis and musculoskeletal strength testing. The Series EK3 force gauge features an easy-to-read backlit display with peak forces and pass/fail indication clearly presented. The gauge is powered either by an 8.4V NiMH rechargeable battery or by an AC adapter. The battery life with the backlight on lasts up to 7 hours of continuous use and 24 hours of continuous use with the backlight off.

Provides Three Measuring Ranges

100 lbF, 200 lbF and 500 lbF (500, 2,500, and 5,000 N) capacity force gauges are available, along with a wide range of attachments for various applications. The attachments click and lock into place with the innovative Click-Lock technology, a rugged anti-rotation locking mechanism. The attachments may be clicked into 90° or 180° orientations. No fastening is required, as with conventional force gauges, thereby reducing the risk of damage to the instrument.

MESUR Lite Data Collection Software

The kit comes equipped with MESUR Lite Data Acquisition Software, designed to hold up to 5,00 data points that can be saved individually or logged continuously at up to 7,000 Hz. The averaging mode calculates average force over a period of time. The data can be output to a PC via the included software or USB cable. With non-slip rubber single or double grip handles for various applications, conveniently stow all items in the included cushioned carrying case.

Due to calibration requirements please note this item takes approximatley 2 weeks to ship.
