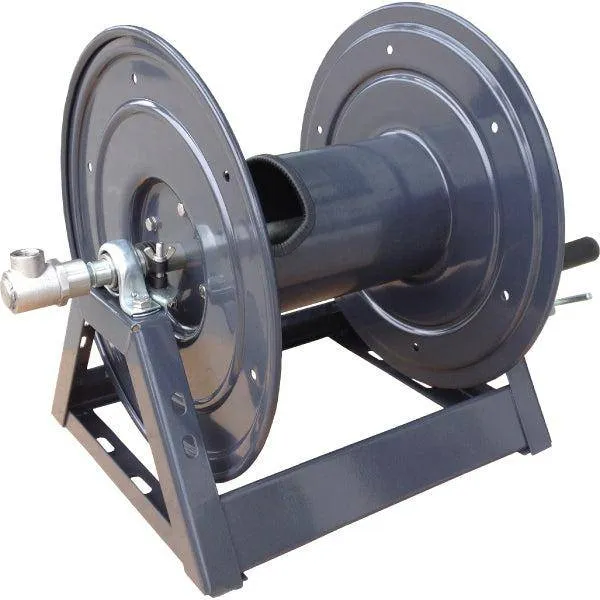

Heavy Duty A Frame Crank Reel with 92 meter hose capacity (3/8")
Features:
- Universal 130mm hole centre foot print
- High gloss powder coated finish
- Extra heavy duty 6 point locking pin and adjustable rubber friction brake
- Dual heavy duty sealed axle ball bearing with stainless steel hardware
- High flow stainless steel swivel with parker Viton O-Rings
- Reversible handle and swivel, lets you switch sides for best mounting option
- Optional Hose guide to guard hose from reload damage (2100463)
- Optional 12 volt power rewind kit. Includes mounting bracket, ring gear and hardware (103166)
Specifications:
- Capacity 92 metres of standard 3/8" hose
- Pressure to 5075 Psi
- Flow to 80 l/min.
- Temp to 150 C
- Inlet 3/8" F
- Outlet 3/8" F
- Weight
