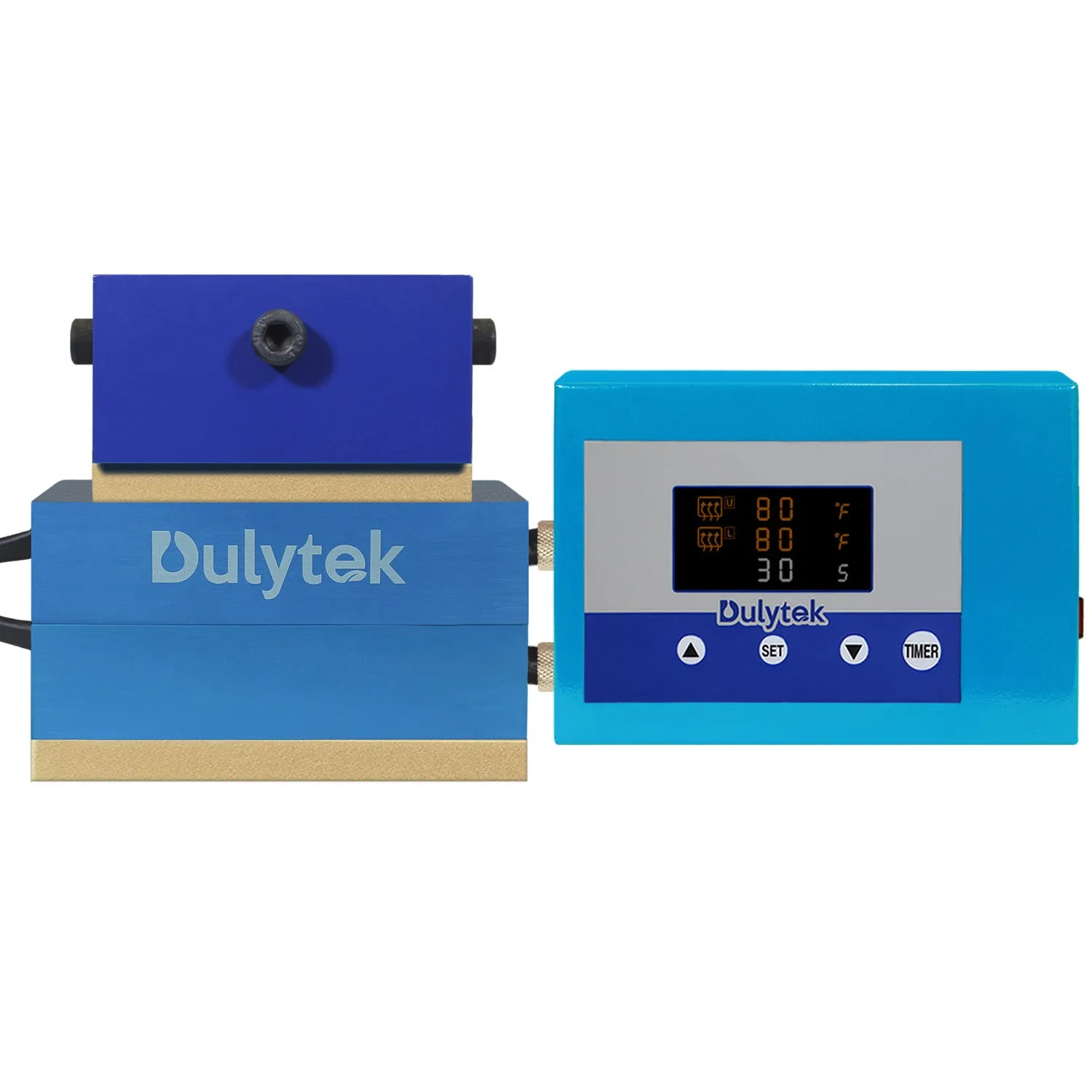

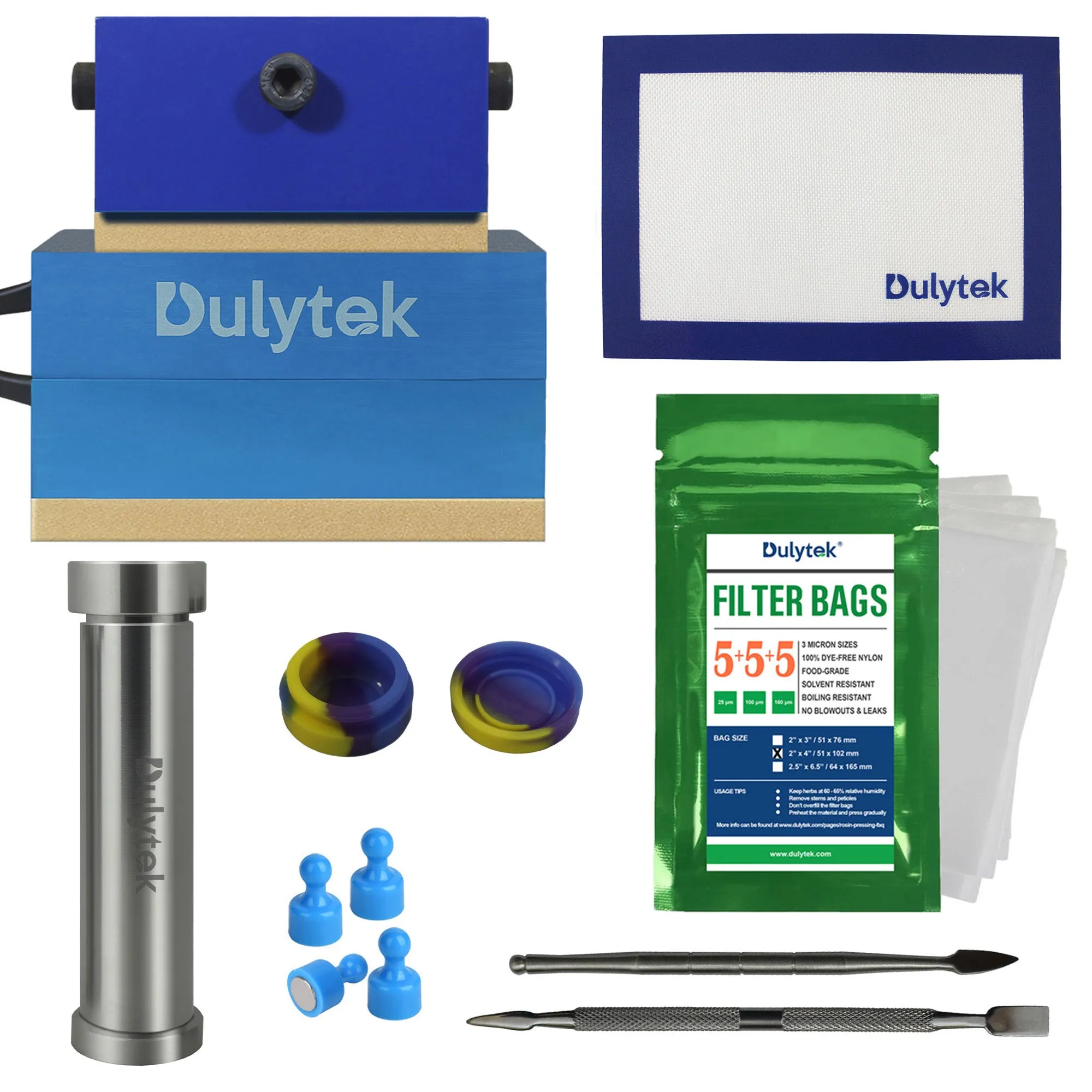

In addition to the Dulytek® 3" x 5" retrofit rosin heat plate kit, this bundle contains all accessories and supplies to make your home heat pressing a breeze: an X-large cylinder pre-press mold, 2" x 4" mixed mesh size filter bags, and a starter kit (a non-stick silicone mat, 2 stainless steel tools, 10 sheets of parchment paper, non-stick storage jar and four press magnet pins). The heat plate kit itself features 3 by 5 inch anodized aluminum plates and a compact two-channel temperature and timer controller with magnetic feet for easy mounting anywhere on your press.
The bundle is available in two versions: 110V for North American and 220V for European and Australian customers. Please note that the 220V presses are not shipped to US and Canada addresses.
| Technical Specifications | ||
|---|---|---|
| DHPK35 Plate Kit | Force: | up to 30,000 lbs / 15 Ton |
| Ram diameter: | up to 2.16 inch / 55 mm | |
| Plates: | 3 x 5 inch / 76 x 127 mm; dual heating; insulated; aluminum | |
| Temp. Range: | up to 302 °F / 150 °C | |
| Weight: | 12 lb / 5.4 kg | |

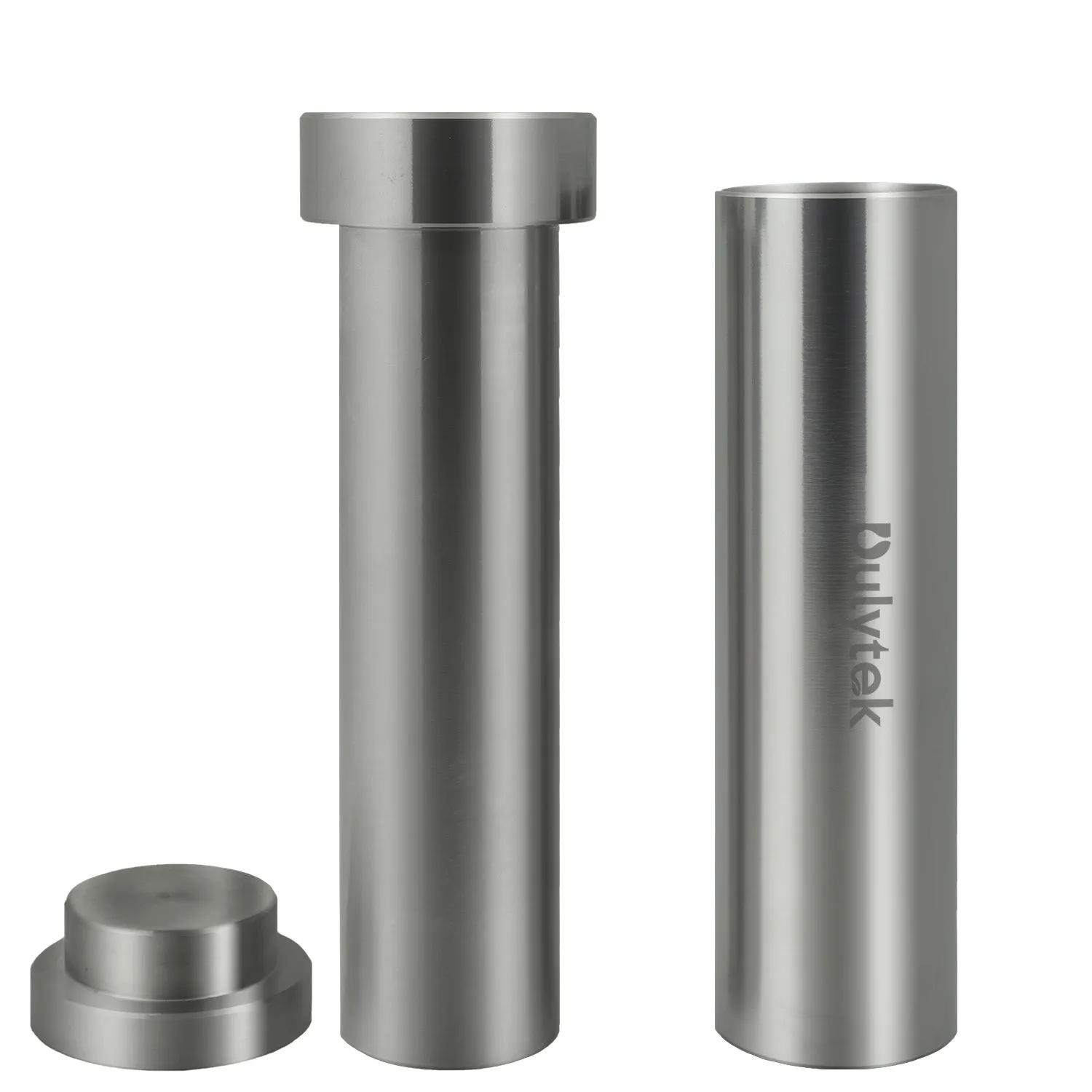

| Pre-Press Mold | Internal Diameter: | 1-3/16 in / 30 mm |
| Shaft Height: | 4-3/4 in / 121 mm | |
| Dimensions: | 5-7/8 x 1-1/2 in / 149 x 38 mm | |

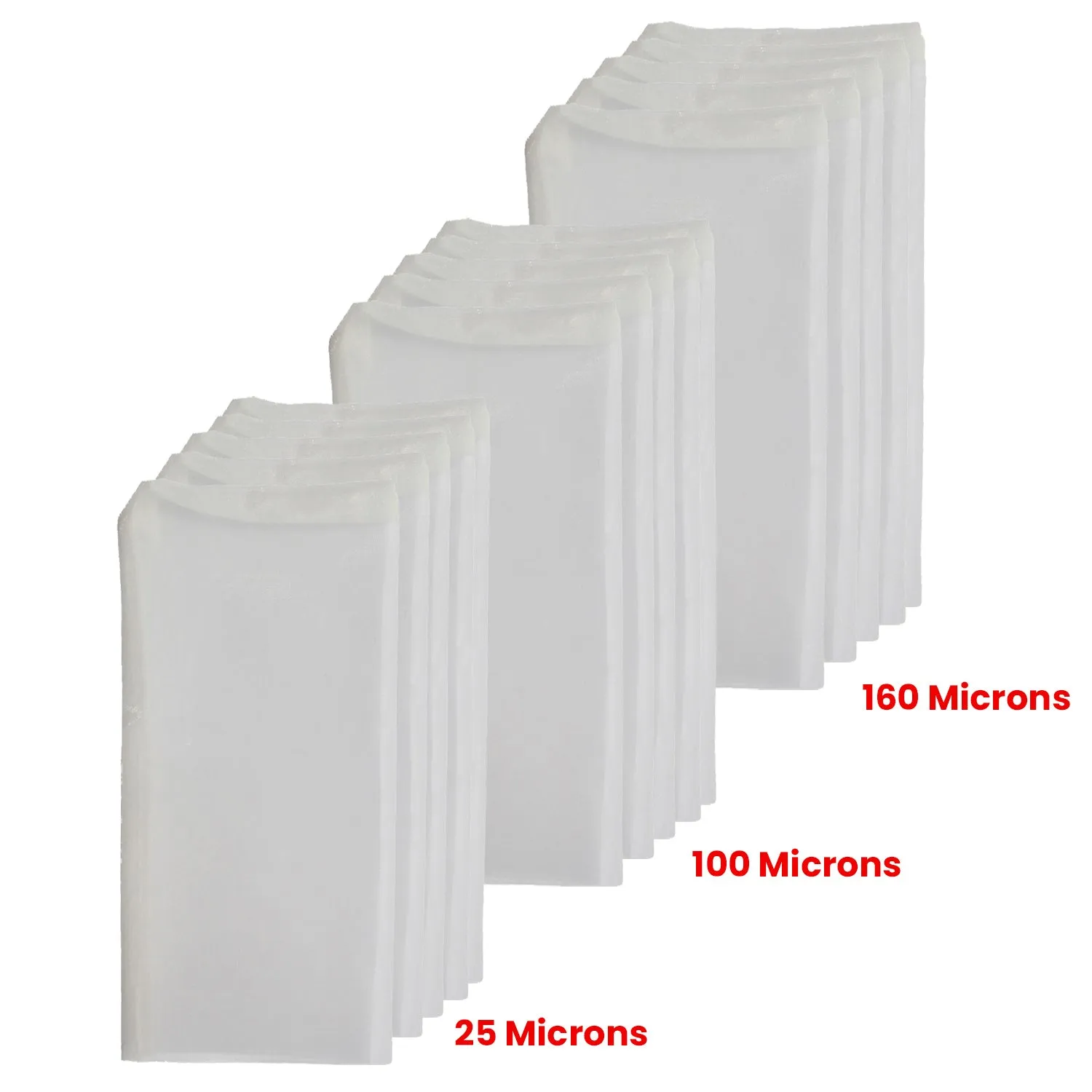

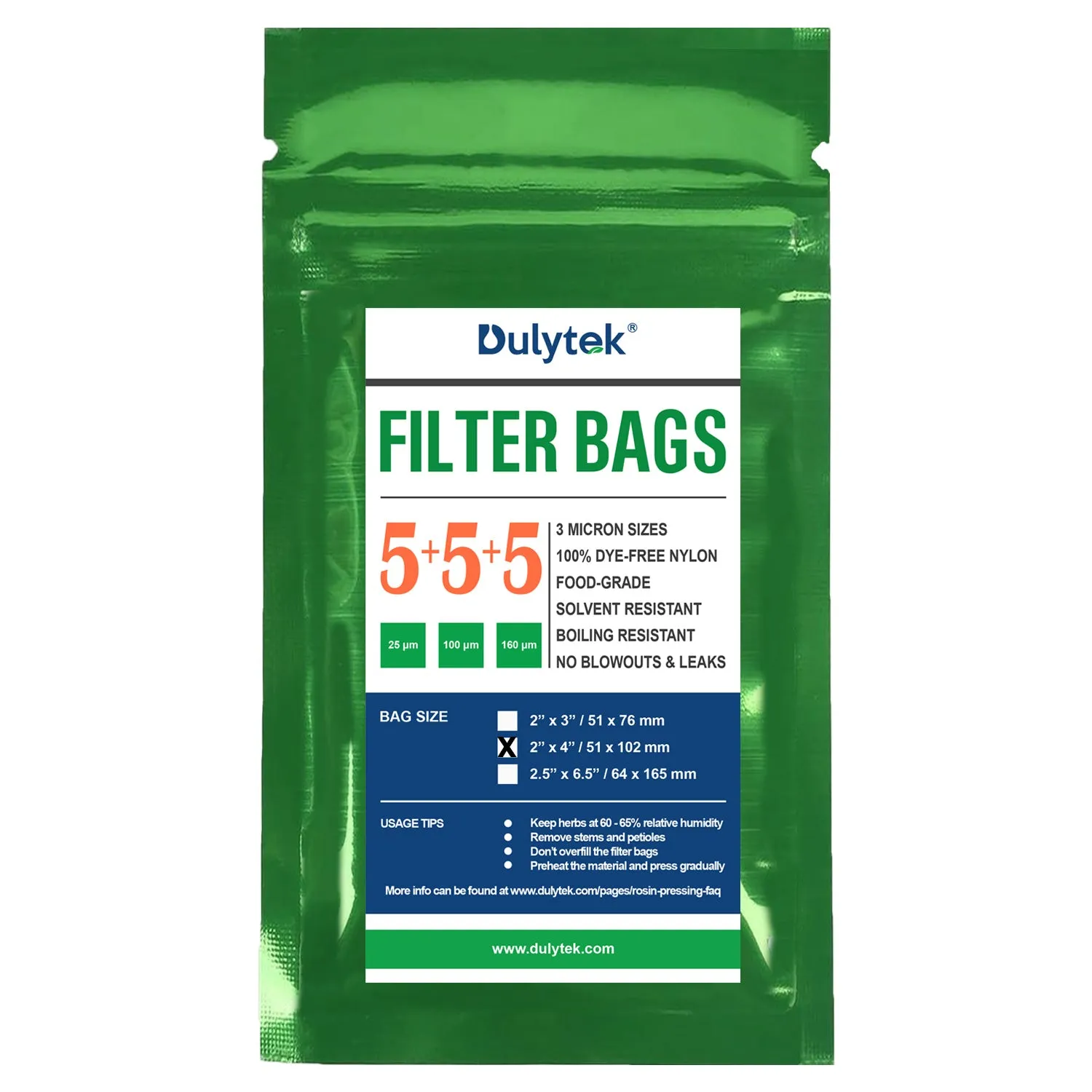

| Filter Bags | Mesh Sizes / Quantity: | 25, 100, and 160 μm included / 5 bags each / 15 bags total |
| Dimensions: | 2" x 4" / 51 mm x 102 mm | |
| Material: | 100% Nylon | |

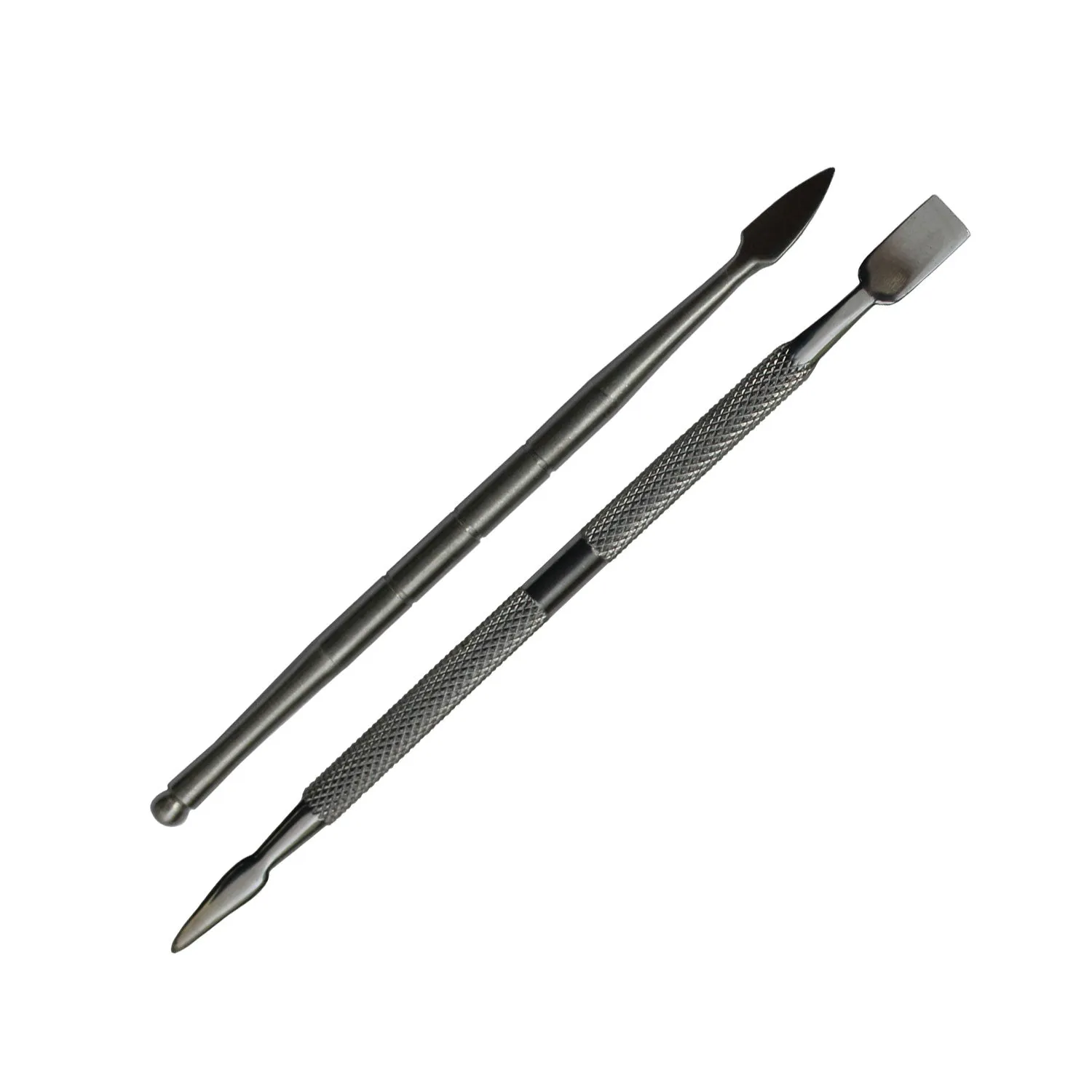

| Starter Kit | Tools: | 2 double ended; stainless steel |

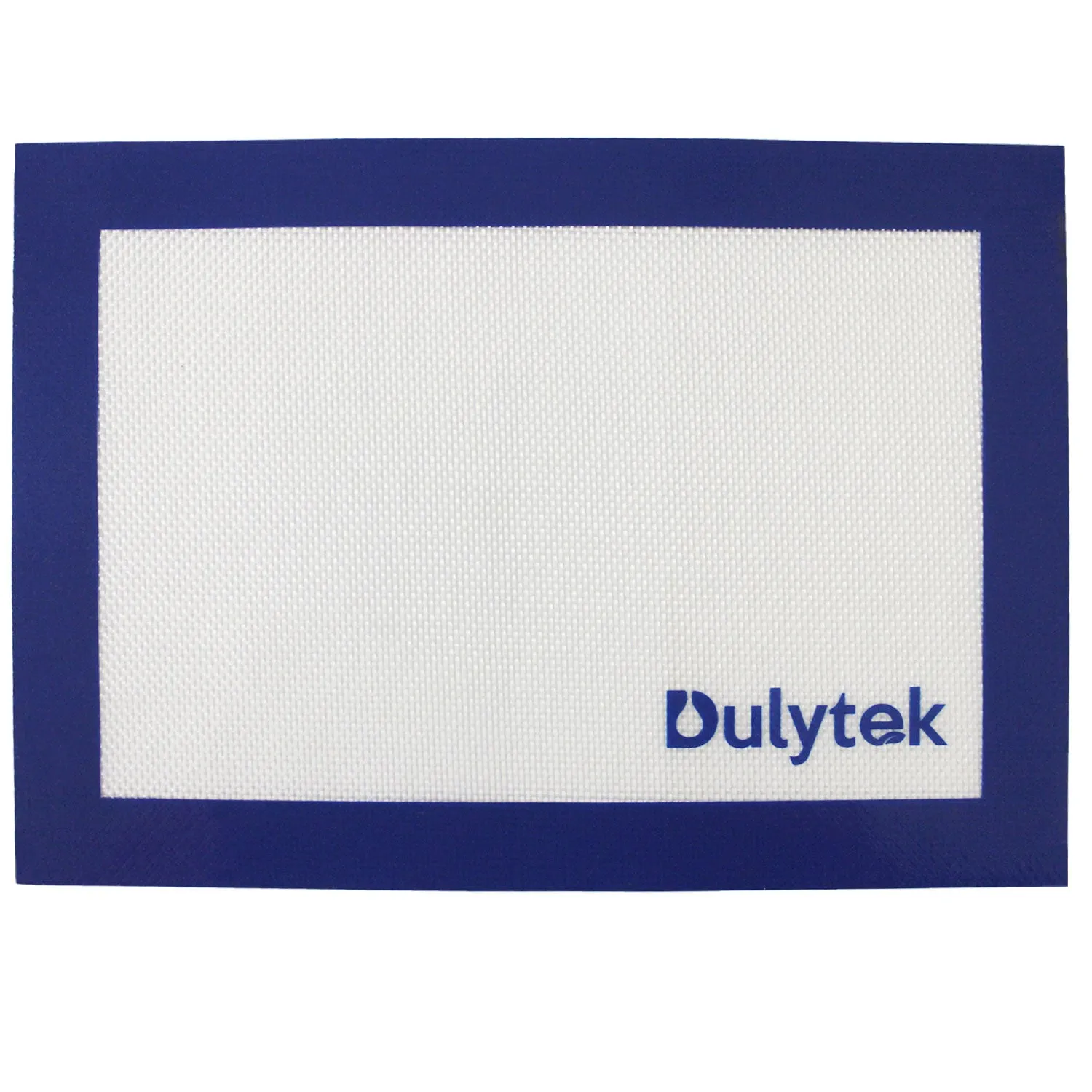

| Mat: | 7 x 4.7" / 180 x 120 mm; food-grade silicone | |

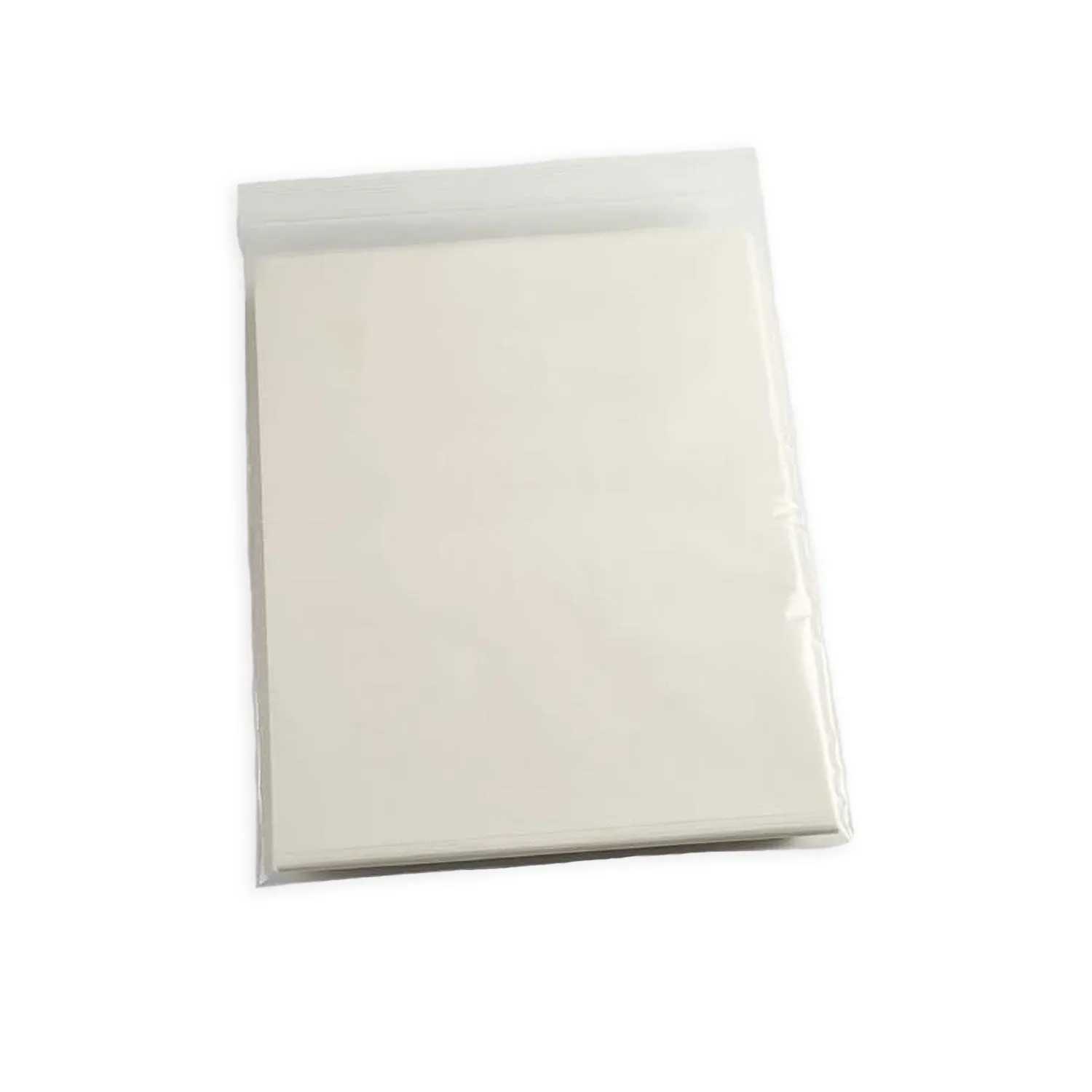

| Pre-cut Parchment Paper: | 10 x 7 inch / 254 x 178 mm; 10 sheets | |

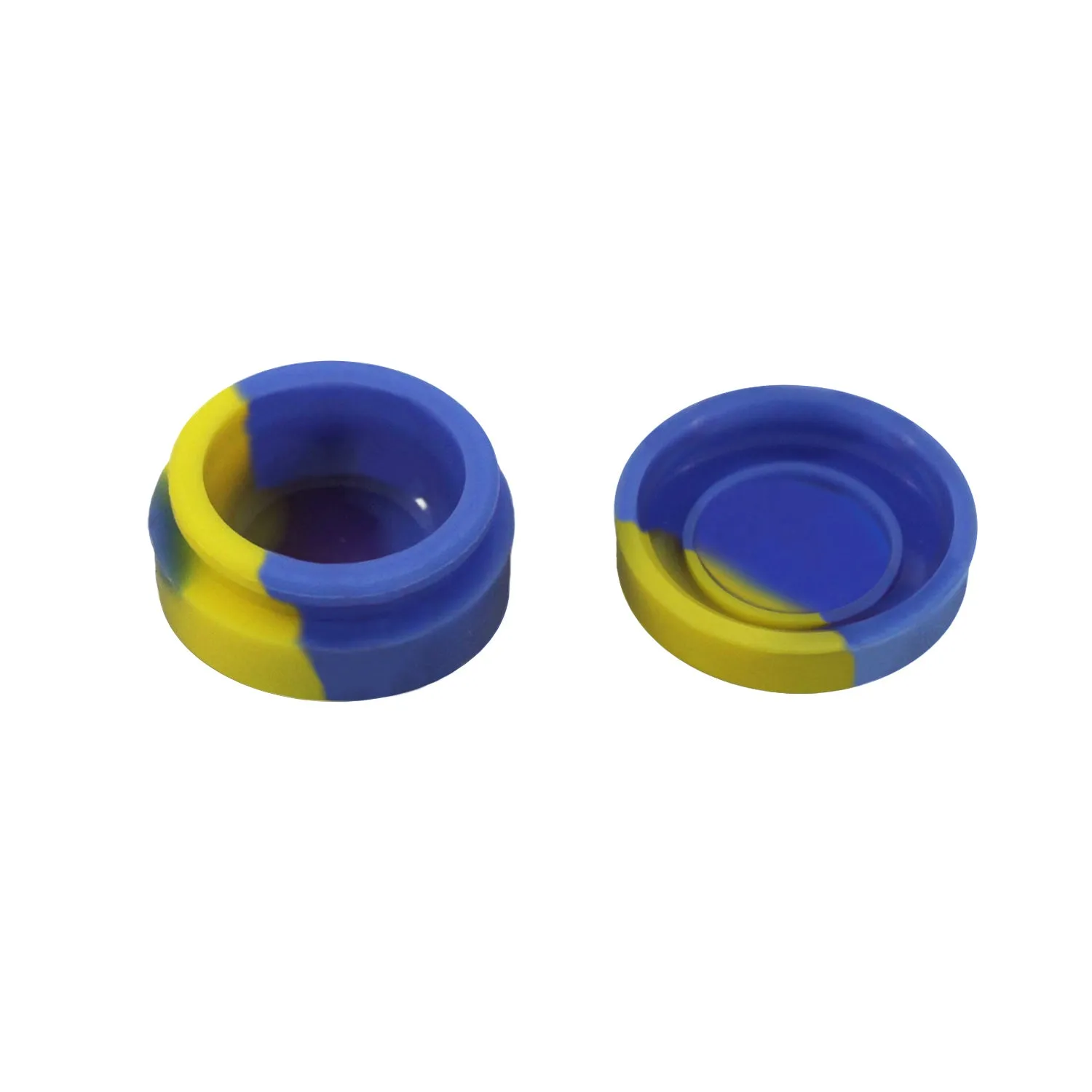

| Lidded Jar: | 3 ml; food-grade silicone | |

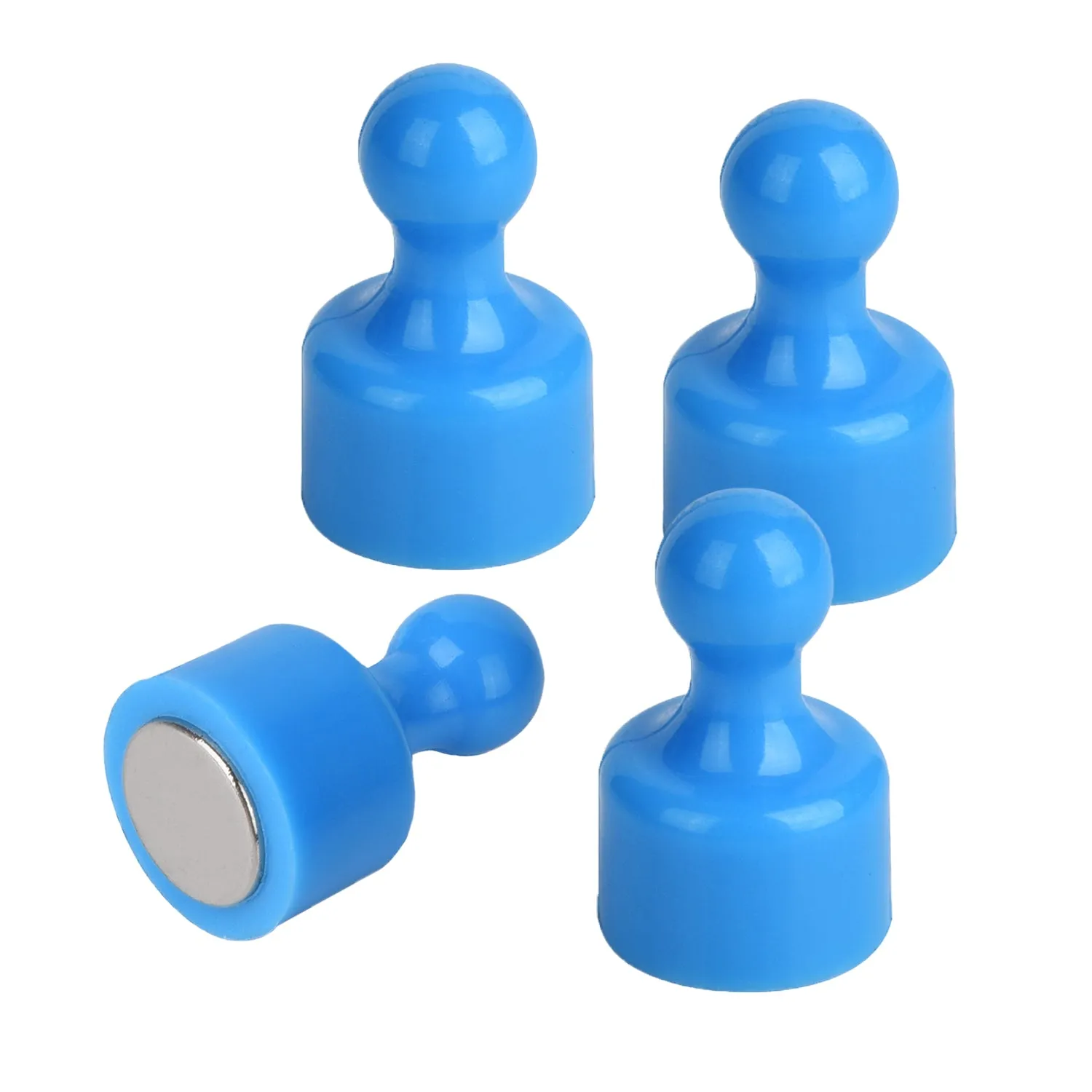

| Magnets: | 4 total; 0.86 x 0.5" / 22 x 13 mm | |
