• Functional Trainer Rack / Squat Rack - Back to Back
• 2 x 80kg steel machined weight stack per rack
• 2:1 Pulley Ratio
• One hand slider adjustment
• Heavy-duty rated cables
• Sealed bearing machined aluminium pulleys

• Magnetic selector pin with spring cable
• Band Peg attachments

• Multi Grip and 32mm Single Chin-up Bars
• Premium J-Hooks supplied

• Plate Storage
• 75x75mm uprights w laser cut numbers and 10mm footplates
• Full Commercial Rating

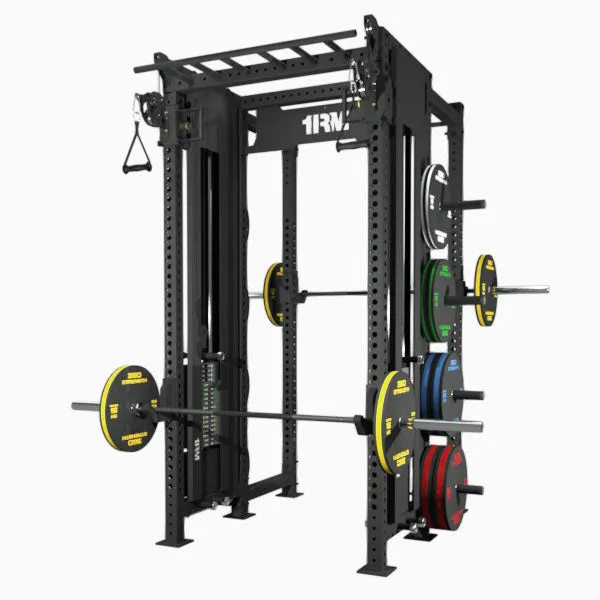

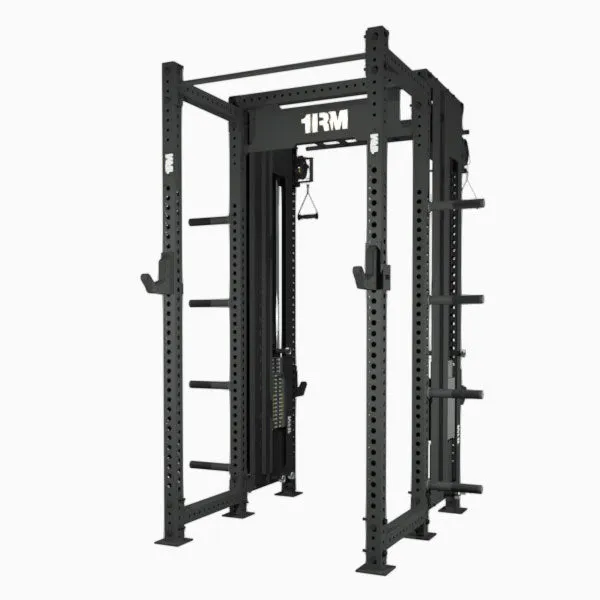

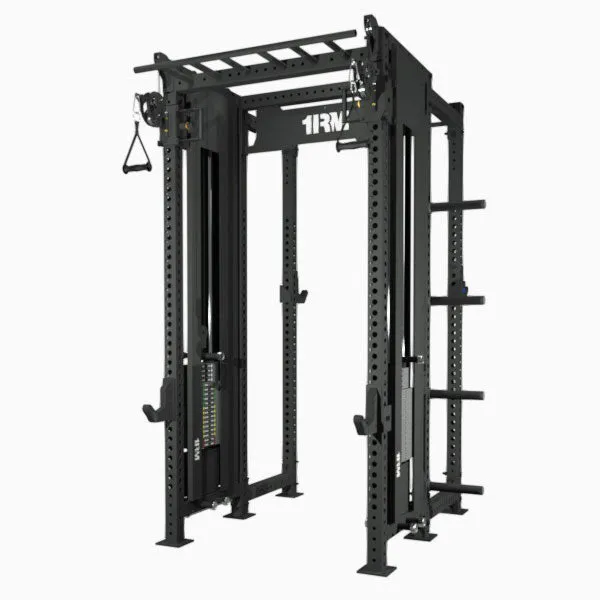

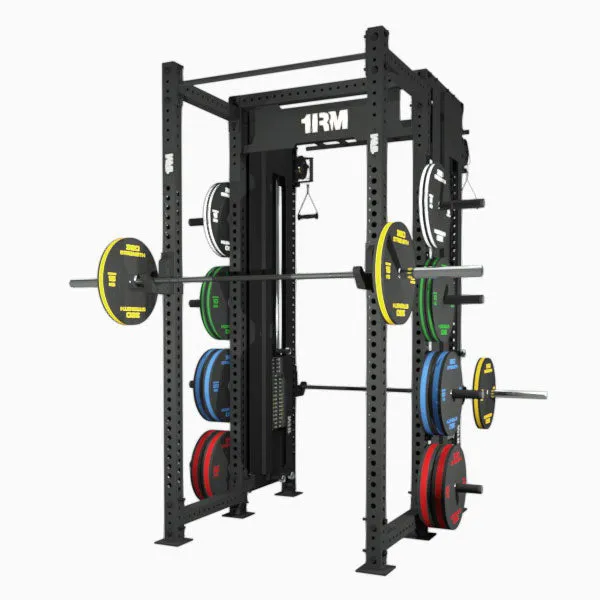

The 1RM Ebony Functional Rack & Obsidian Compact Power Rack WalkThrough offers two squat racks and a functional trainer in one unit in a back to back design, complete with plate storage. With the built-in squat rack offering two 2:1 ratio 80kg or 130kg selectorised weight stacks with 2000lb rated tensile strength cables and sealed bearing machines aluminium pulleys, and a second squat rack it's perfect for any environment where strength and quality are demanded.

Features include matte black textured powder coated steel frame, aircraft steel cables, and high quality machined aluminium pulley wheels. The little details also count with easy to adjust anodised aluminium pop pins, a magnetic selector pin with spring cables and band pegs for adding those incremental gains. Included are 16 weight plate storage pins to store your bumpers or olympic plates.

With the top four weight plates weighing 2.5kg, and the remaining plates weighing 5kg, it's suitable for all lifters from beginner to experienced.

The included J-Hooks feature a heavy duty steel frame construction with matte-black, textured powder-coat for maximum durability. With High density polyethylene (HDPE) J inserts and black plastic inserts to protect your bar and rig uprights. A simple push and twist design with no locking pins required, they can be added a removed as required.

Specifications:

• Functional Trainer Rack / Squat Rack - Back to Back
• 2 x 80kg steel machined weight stack per rack
• 2:1 Pulley Ratio
• One hand slider adjustment
• Heavy-duty rated cables
• Sealed bearing machined aluminium pulleys

• Magnetic selector pin with spring cable
• Band Peg attachments

• Multi Grip and 32mm Single Chin-up Bars
• Premium J-Hooks supplied

• Plate Storage
• 75x75mm uprights w laser cut numbers and 10mm footplates
• Full Commercial Rating


Dimensions:

• Width: 1818mm
• Depth: 1816mm
• Height: 2510mm

Other Considerations:

Space Required. Please note you need a minimum ceiling clearance of 2.6m for installation. It is recommended around 2.9m to 3m ceiling clearance to have full functionality overhead for barbell work and bar muscle ups.

Installation. It is recommended that the 1RM Ebony units be mounted to the floor. It can be fixed to a floor or structural surface using M12 or M16 size dynabolts / concrete screws (not supplied). Each foot requires four screws. The method used to install the uprights is dependent on the floor they are being affixed to and your preferred method. Any M12 or M16 fixing 75mm or longer is suitable for the intended purpose of functional training depending on the thickness of the flooring.

If you cannot bolt the unit down, it is recommended that you purchase two pair of 1RM Stubby Feet to install on the front of the unit.
